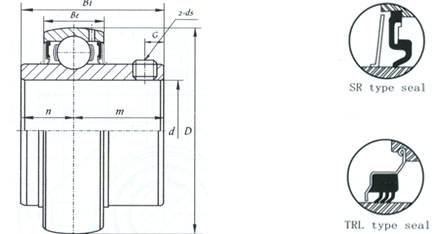

UC200系列外球面軸承
飛奇軸承廠生產UC200系列外球面軸承，外球面軸承型號寸尺寸對照如下表：
|
|
軸承型號Bearing No. |
軸徑
Shaft Dia |
外型尺寸Dimensions(mm) |
重量
Weight
(kg) |
|
d |
|
mm |
D |
Bi |
Be |
n |
m |
G |
ds |
|
mm |
|
UC202 |
15 |
40 |
27.4 |
14 |
11.5 |
15.9 |
4.5 |
M5×0.8 |
0.14 |
|
UC203 |
17 |
40 |
27.4 |
14 |
11.5 |
15.9 |
4.5 |
M5×0.8 |
0.13 |
|
UC204 |
20 |
47 |
31.0 |
17 |
12.3 |
18.7 |
5.0 |
M6×1.0 |
0.18 |
|
UC205 |
25 |
52 |
34.1 |
17 |
14.3 |
19.8 |
5.0 |
M6×1.0 |
0.22 |
|
UC206 |
30 |
62 |
38.1 |
19 |
15.9 |
22.2 |
5.0 |
M6×1.0 |
0.34 |
|
UC207 |
35 |
72 |
42.9 |
20 |
17.5 |
25.4 |
7.0 |
M8×1.0 |
0.52 |
|
UC208 |
40 |
80 |
49.2 |
21 |
19.0 |
30.2 |
8.0 |
M8×1.0 |
0.68 |
|
UC209 |
45 |
85 |
49.2 |
22 |
19.0 |
30.2 |
8.0 |
M8×1.0 |
0.78 |
|
UC210 |
50 |
90 |
51.6 |
22 |
19.0 |
32.6 |
10.0 |
M10×1.25 |
0.85 |
|
UC211 |
55 |
100 |
55.6 |
25 |
22.2 |
33.4 |
10.0 |
M10×1.25 |
1.22 |
|
UC212 |
60 |
110 |
65.1 |
27 |
25.4 |
39.7 |
10.0 |
M10×1.25 |
1.65 |
|
UC213 |
65 |
120 |
65.1 |
29 |
25.4 |
39.7 |
10.0 |
M10×1.25 |
1.96 |
|
UC214 |
70 |
125 |
74.6 |
30 |
30.2 |
44.4 |
12.0 |
M12×1.5 |
2.06 |
|
UC215 |
75 |
130 |
77.8 |
30 |
33.3 |
44.5 |
12.0 |
M12×1.5 |
2.30 |
|
UC216 |
80 |
140 |
82.6 |
33 |
33.3 |
49.3 |
12.0 |
M12×1.5 |
2.79 |
|
UC217 |
85 |
150 |
85.7 |
35 |
34.1 |
51.6 |
12.0 |
M12×1.5 |
3.59 |
|
UC218 |
90 |
160 |
96.0 |
37 |
39.7 |
56.3 |
12.0 |
M12×1.5 |
4.56 |
|
|
更多軸承型號查詢，可以上
軸承型號查詢網。或電話咨詢：13861292888 13861292888
