6900系列深溝球軸承尺寸

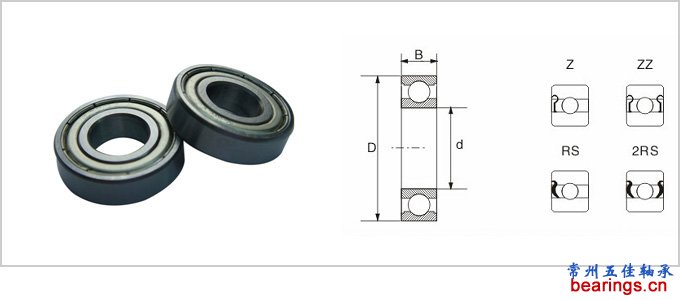

深溝球軸承尺寸
| 軸承型號 | 軸承外型尺寸 (Outside size) | 軸承基本額定負荷 (KN) Basic rating load (KN) | 重量(KG) W(≈) | |||
| d | D | B | Cr | Cor | ||
| 693 | 3 | 8 | 3 | 0.45 | 0.15 | 0.0008 |
| 964 | 4 | 11 | 4 | 0.95 | 0.35 | 0.002 |
| 695 | 5 | 13 | 4 | 1.08 | 0.42 | 0.0025 |
| 696 | 6 | 15 | 5 | 1.48 | 0.60 | 0.0045 |
| 697 | 7 | 17 | 5 | 2.02 | 0.80 | 0.0057 |
| 698 | 8 | 19 | 6 | 2.25 | 0.92 | 0.0085 |
| 699 | 9 | 20 | 6 | 2.48 | 1.08 | 0.0092 |
| 6900 | 10 | 22 | 6 | 2.70 | 1.30 | 0.008 |
| 6901 | 12 | 24 | 6 | 2.80 | 1.50 | 0.0081 |
| 6902 | 15 | 28 | 7 | 4.30 | 2.30 | 0.012 |
| 6903 | 17 | 30 | 7 | 4.60 | 2.60 | 0.014 |
| 6904 | 20 | 37 | 9 | 6.40 | 3.70 | 0.031 |
| 6905 | 25 | 42 | 9 | 7.00 | 4.50 | 0.038 |
| 6906 | 30 | 47 | 9 | 7.20 | 5.00 | 0.043 |
| 6907 | 35 | 55 | 10 | 9.50 | 6.80 | 0.078 |
| 6908 | 40 | 62 | 12 | 13.70 | 9.90 | 0.103 |
| 6909 | 45 | 68 | 12 | 14.10 | 10.90 | 0.120 |
| 6910 | 50 | 72 | 12 | 14.50 | 11.70 | 0.122 |
| 6911 | 55 | 80 | 13 | 15.90 | 13.20 | 0.170 |
| 6912 | 60 | 85 | 13 | 16.40 | 14.20 | 0.181 |
| 6913 | 65 | 90 | 13 | 17.40 | 16.00 | 0.196 |
| 6914 | 70 | 100 | 16 | 23.70 | 21.10 | 0.336 |
| 6915 | 75 | 105 | 16 | 24.30 | 22.50 | 0.355 |
| 6916 | 80 | 110 | 16 | 24.90 | 23.90 | 0.375 |
| 6917 | 85 | 120 | 18 | 31.90 | 29.70 | 0.507 |
| 6918 | 90 | 125 | 18 | 32.80 | 31.50 | 0.533 |
| 6919 | 95 | 130 | 18 | 33.70 | 33.30 | 0.56 |
| 6920 | 100 | 140 | 20 | 42.70 | 41.90 | 0.77 |
